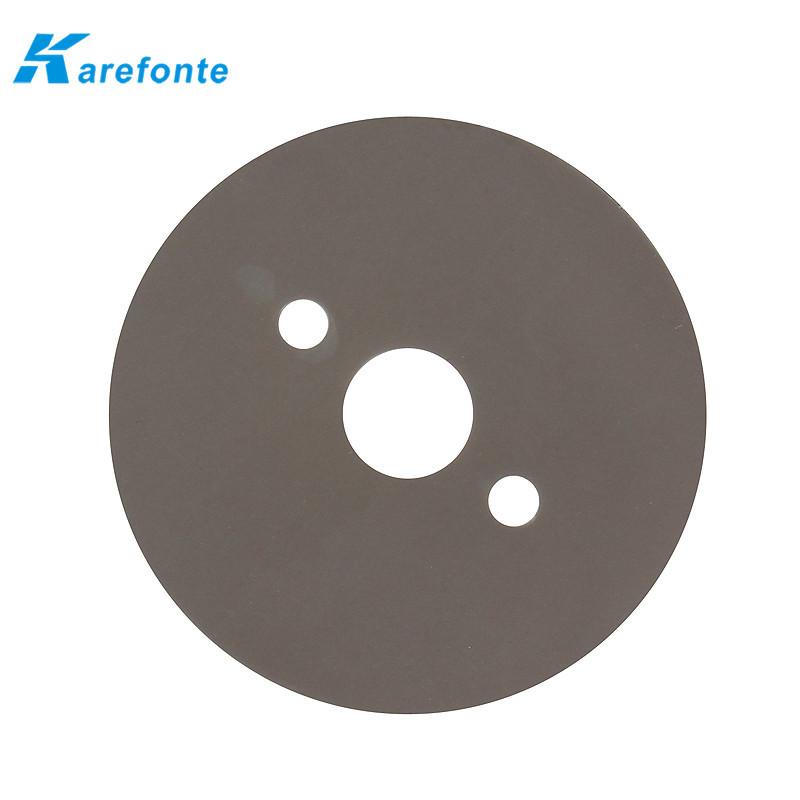

Thermal Conductive Silicon Pad Thermal Gap Filler Pad For Led

  • Thermal Conductive Silicon Pad Thermal Gap Filler Pad For Led
  • Thermal Conductive Silicon Pad Thermal Gap Filler Pad For Led
  • Thermal Conductive Silicon Pad Thermal Gap Filler Pad For Led
  • Thermal Conductive Silicon Pad Thermal Gap Filler Pad For Led
Model No.︰PM300
Brand Name︰Karefonte
Country of Origin︰China
Unit Price︰US $ 0.05 / pc
Minimum Order︰10 pc
Share on:

 Total 32 Related Items
Prev910111213Next

Product Description

Applications:
1.Car engine module, notebook computer
2.Flat panel TV, mobile equipment, high-speed hard disk drive
3.Between semiconductor and radiating fin
4.Desktop, portable computer and server
5.LED lighting device, the power supply of UPS
6.LED and PDP flat panel display


Performance:
◆High thermal conductivity:3.2W/m-k
◆Stable Performance, low thermal resistance, effectively improve the heat transfer speed
◆Low hardness, its viscosity high, easy to use

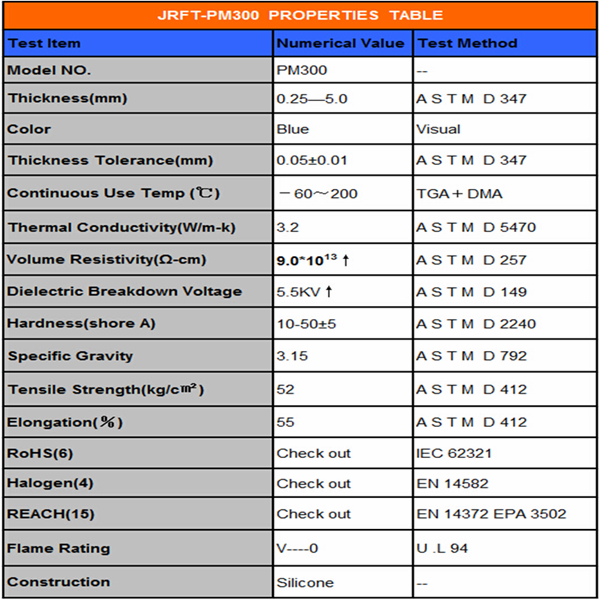

Specification:
◆Standard size:310mm*310mm, 200mm*400mm according to customer needs cut the shape
◆Basic thickness:0.25mm*5.0mm, special size and thickness can be customized
Its slightly viscous, if need to strengthen the adhesive can be according to customer’s requirement
◆Product color is mass production color, need special color can be adjusted according to the actual situation

Price Terms︰FOB/CIF
Payment Terms︰TT / Paypal / Western Union / MoneyGram
Lead Time︰After payment 1-3 working days
Color︰Hoar / Blue / Black
Size︰200mm*400mm 310mm*310mm( customized)
Product Image
