Thermal Silicone Sheet Thermally Gap Pad For Smart Phone / Tablet PC

  • Thermal Silicone Sheet Thermally Gap Pad For Smart Phone / Tablet PC
  • Thermal Silicone Sheet Thermally Gap Pad For Smart Phone / Tablet PC
  • Thermal Silicone Sheet Thermally Gap Pad For Smart Phone / Tablet PC
  • Thermal Silicone Sheet Thermally Gap Pad For Smart Phone / Tablet PC
Model No.︰PM 350
Brand Name︰Karefonte
Country of Origin︰China
Unit Price︰US $ 0.015 / pc
Minimum Order︰10 pc
Share on:

 Total 32 Related Items
Prev7891011Next

Product Description

PM350 high thermal silicone pad is widely used in situation of high demand for heat conduction and insulation. Using high thermal conductive properties, and the soft silicone fit closely characteristics make it exert the maximum thermal conductive property, effectively improving the performance of electronic products.

PM350 thermal silicone pad is placed between the heating device and the radiating power structure, make the power module heating effectively transfer to radiating component, cooling system.

Applications:
1.LED lighting, lighting equipment
2.Household appliances, LCD display
3.Between semiconductor and radiating fin
4.communication product, smart phone, tablet
5.Desktop, notebook and other portable computer
6.Large power supply etc.


Performance:
High thermal conductivity:3.5W/m-k
Stable performance, low thermal resistance, effectively improve the heat transfer speed
Low hardness, its viscosity high, easy to use
By UL and V-0 certification standards

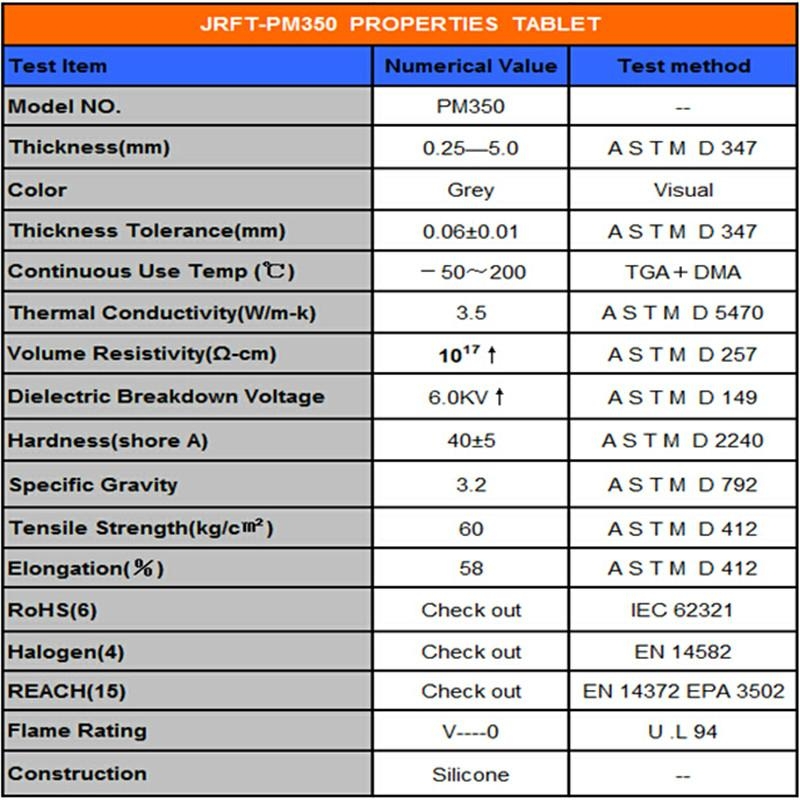

Specification:
standard size: 300mm*300mm, 200mm*400mm , can according customer’s need to cut the shape

Basic thickness : 0.25mm*5.0mm, special size and thickness can be customized

Itself is slightly viscous, if need to strengthen the adhesive can be according customer’s requirement

Product color is mass production color, if special color can be adjusted according to the actual situation

Price Terms︰FOB/CIF
Payment Terms︰TT / Western Union / Paypal / MoneyGram
Packing︰box
Lead Time︰After payment 1-3 working days
Standards Certificate︰ISO 9001 , RoHS , REACH
Color︰Grey/ Blue / Black
Size︰200mm*400mm 310mm*310mm(customized)
