Aluminium Nitride Customize AlN Ceramic With High Thermal Conductivity

  • Aluminium Nitride Customize AlN Ceramic With High Thermal Conductivity
  • Aluminium Nitride Customize AlN Ceramic With High Thermal Conductivity
  • Aluminium Nitride Customize AlN Ceramic With High Thermal Conductivity
  • Aluminium Nitride Customize AlN Ceramic With High Thermal Conductivity
Model No.︰TC-026
Brand Name︰Karefornte
Country of Origin︰China
Minimum Order︰20 pc
Share on:

 Total 27 Related Items
Prev1819202122Next

Product Description

Feature:

1.High hardness , diversity                                         2. High precision and density

3.High reliability and stability                                     4. High thermal conductivity

5.Extremely abrasive resistance performance                 6. Wide scope of application



Application

high-power circuits, RF and microwave circuits , GaAs crystal crucible, Al evaporation pan, MHD power generation equipment



Product Introduction

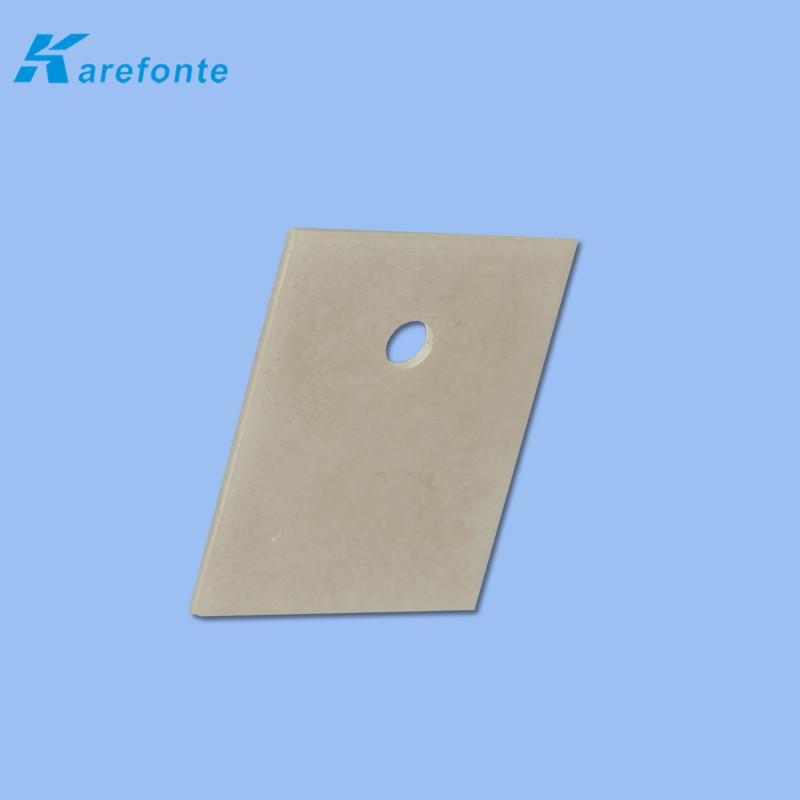

AlN Ceramic  is a ceramic material with outstanding properties such as high thermal conductivity and high electrical resistance. In addition, it is featured with advantages such as high hardness, corrosion resistant, low dielectric loss and low CTE.

It is widely used in the semiconductor, electronics, electrical and other industries.



Aln ceramic substrate, high thermal conductivity, low coefficient of expansion, high strength, high temperature resistance, chemical resistance, high resistivity , low dielectric loss, is the ideal LSI heat dissipation board and packaging materials.



Aln ceramic use heat resistant melt erosion and thermal shock resistance, can produce GaAs crystal crucible, Al evaporation pan, MHD power generation equipment and high temperature turbine corrosion resistant parts, using its optical properties can be used as an infrared window.



Specification

Regular size :

1mm * 22mm * 17 mm

1mm * 14mm * 20 mm

1mm * 20mm * 25 mm

1mm * 22mm * 28mm

0.38mm*114mm*114mm

0.5mm*120mm*120mm

0.635mm*120mm*120mm

1mm*120mm*120mm

1.5mm*120mm*120mm

Other Non-standard products , please contact us to provide drawings of your products.

welcome drawings processing customized zirconia /alumina / aluminum nitride .













Price Terms︰FOB/CIF
Payment Terms︰TT/ Western Union / Paypal
Packing︰box
Lead Time︰After payment 1-3 working days
Standards Certificate︰ISO 9001, RoHS, REACH
Color︰Light beige
Size︰customize
