TO-3P Aln Ceramic Pad 20x25mm High Thermal Conductivity IGBT Cooling Pads

  • TO-3P  Aln Ceramic Pad 20x25mm High Thermal Conductivity IGBT Cooling Pads
  • TO-3P  Aln Ceramic Pad 20x25mm High Thermal Conductivity IGBT Cooling Pads
  • TO-3P  Aln Ceramic Pad 20x25mm High Thermal Conductivity IGBT Cooling Pads
  • TO-3P  Aln Ceramic Pad 20x25mm High Thermal Conductivity IGBT Cooling Pads
  • TO-3P  Aln Ceramic Pad 20x25mm High Thermal Conductivity IGBT Cooling Pads
Model No.︰TC-027
Brand Name︰Karefonte
Country of Origin︰China
Unit Price︰-
Minimum Order︰10 pc
Share on:

 Total 24 Related Items
Prev12345Next

Product Description

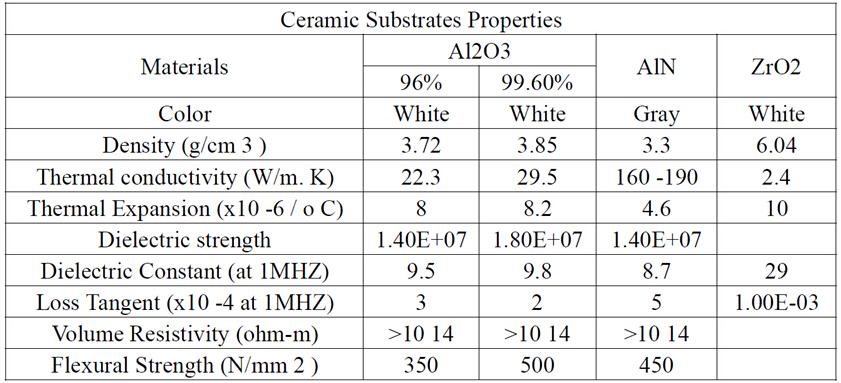

Aln Ceramic Pad AlN (Aluminum Nitride ) is a ceramic material with outstanding properties such as high thermal conductivity and high electrical resistance. In addition, it is featured with advantages such as high hardness, corrosion resistant, low dielectric loss and low CTE. It is widely used in the LED, semiconductor, electronics, electrical and other industries.



Feature:

High hardness, diversity,   high precision and density;

High reliability and stability,  high thermal conductivity;

Extremely abrasive resistance performance.



Application :

high-power circuits, RF and microwave circuits, LED,

Al evaporation pan, MHD power generation equipment.



Size : 20mm x 25mm ( 0.635 / 1.0mm  T)



Other Big Sheet Regular Dimensions

0.38mm*114mm*114mm,    0.5mm*114mm*114mm

0.635mm*114mm*114mm,  1mm*114mm*114mm

1.0mm*120mm*120mm,      0.5mm*120mm*120mm

0.635mm*120mm*120mm   1.5mm*120mm*120mm



Price Terms︰EXW , FOB , CIF
Payment Terms︰TT / Paypal / Western Union
Packing︰Box
Lead Time︰1~3 working days
Standards Certificate︰ISO 900 , RoHS , REACH
Color︰Grey
Size︰20x25mm (0.635 / 1.0mm T)
Product Image
