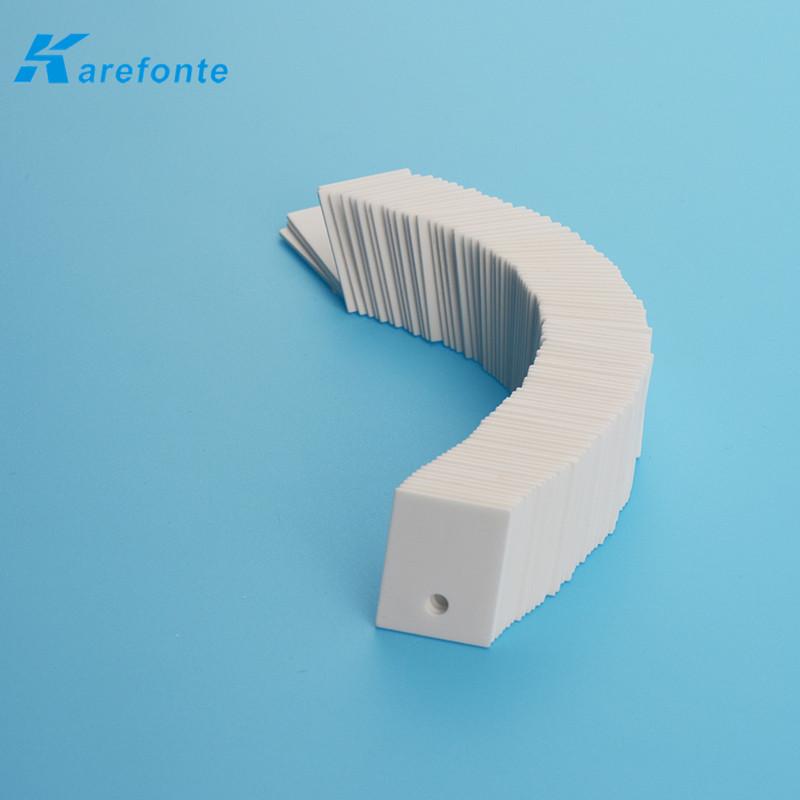

0.635x21.8x30mm Alumina Ceramic IGBT Insulation Al2O3 Ceramic Plate

  • 0.635x21.8x30mm Alumina Ceramic IGBT Insulation Al2O3 Ceramic Plate
  • 0.635x21.8x30mm Alumina Ceramic IGBT Insulation Al2O3 Ceramic Plate
  • 0.635x21.8x30mm Alumina Ceramic IGBT Insulation Al2O3 Ceramic Plate
  • 0.635x21.8x30mm Alumina Ceramic IGBT Insulation Al2O3 Ceramic Plate
Model No.︰TC-025
Brand Name︰Karefonte
Country of Origin︰China
Unit Price︰US $ 0.08 / pc
Minimum Order︰150 pc
Share on:

 Total 24 Related Items
Prev45678Next

Product Description

Alumina  Ceramic

Alumina ceramic is Al2O3 as main raw material, in the rare metal oxide as flux, special ceramic piece after one thousand degrees high temperature roasting into.
Al2O3 ceramic alumina content is high, the structure is relatively compact, with special properties, it is known as the special ceramics. The Al2O3. ceramic materials are densely arranged six party structure for oxygen ion and aluminum ion, filled in 2/3 with eight sides in the gap, which is the same with natural corundum stable alpha Al2O3 structure, so the ceramics with high melting point, high hardness, good wear - resistance.


Feature:
1. High hardness
2. Extremely abrasive resistance performance
3. Light weight
4. Wide scope of application



Performance

Physical properties:high insulation resistance, breakdown, high temperature resistance, abrasion resistance, high strength (three meters altitude fall not broken)
Fire rating: USA military standard MIL-F-51058 (the highest level)
Typical application: strong current, voltage, strong high temperature parts, IC MOS, IGBT power tube heat pipe insulation
Certification:natural organic matter, the European Union, exempt products without certification materials
Thermal conductivity:high temperature: 1600 degrees below the ideal heat insulating material of high voltage and high frequency equipment


Application
Alumina ceramic is mainly used in large power equipment, IC MOS tube, IGBT chip heat conducting insulation, high frequency power supply, communication, mechanical equipment, strong current, high voltage, high temperature and other thermal heat insulation parts need products.
Physical properties: high thermal conductivity, high voltage insulation resistance, high temperature resistant, abrasion resistant, high strength



Product  specifications:

0.635mm*21.8mm*30mm

Regular size and models :
TO-220, 1mm*14mm*19mm
TO-3 P,  1mm*20mm*25mm
TO-264, 1mm*22mm*28mm
TO-247, 1mm*17mm*22mm
Other non-standard products can provide drawings to custom processing

Price Terms︰FOB/CIF
Payment Terms︰TT/ Western Union/Paypal
Packing︰box
Lead Time︰After payment 1~3 working days
SKU︰100000 pcs
Standards Certificate︰ISO 900 , RoHS
Color︰White
Size︰0.635x21.8x30mm
